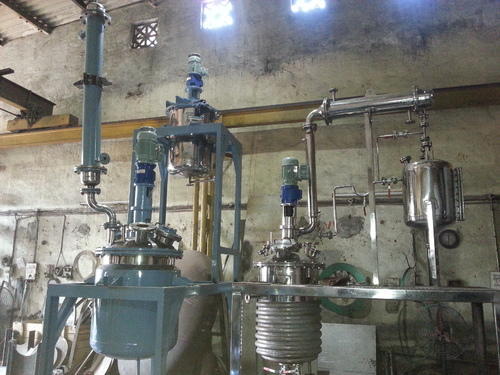

PVA Emulsion plant

Pva emulsion resin reactor machinery plant

Operating principle: Break down or recombined the materials through mixing, filling and cooling, to promote the reaction of polymerization.
2) Components: Body, gears, mixing devices, heating devices, cooling devices, seal, etc.
3) Auxiliary Equipment: Distillation column, head tank, condenser, water separator, collecting cans, filters, etc..
4) Widely used in: Resins, adhesives, paint, cosmetics, pharmaceutical and other chemical production.
5) Applicable Field: All the liquid-liquid, liquid-powder reaction industry.
6) The blending forms are divided into anchor type, frame type and oar type etc.

Emulsion Resin Plant offered are used for getting end product Emulsion that comprises solvent free binders finding application in preparation of paints as well as coatings. Manufactured through polymerization process where monomers are dispersed in aqueous phase for getting uniform & stable emulsion, these paints as well as coatings which are based on emulsion systems deliver quality performance and are also environment friendly.Please contact us for PVA Emulsion Plant

Model selection reference of resin production equipment

Composition Instructions
Main ReactorThe size, material, heat transfer systems, mixing systems, sealing systems of reactor according to client's specification
Dosing VesselAccording to the client's demand, it adopts gravity tank, gravity mixing tank, gravity dispersing tank, gravity emulsifying tank.
Distillation DeviceVertical condenser, horizontal condenser and separator.
Vacuum systemAll kinds of vacuum pumps, buffer tanks.
Thinning VesselThe size, material, heat transfer systems, mixing systems, sealing systems of thinning vessel according to client's specification
Pipeline systemAccording to the client's demand, it decides the heating, cooling, vacuum and material pipelines, and including related valves, flowmeters and expanders etc.
Control SystemAccording to client's demand, it decides manual, semi-automatic or full-automatic system.
Filter SystemFrame filter, bag filter or centrifuge etc.
Operation PlatformSteel platform or concrete platform


Chemical Machine Resin Plant is the key equipment for producing all kinds of resins, such as Alkyd resin, Acrylic resin, PET resin, epoxy resins, ABS resins, Polyester resin, Unsaturated polyester resin, , Amino resin, curing agent, PVA etc.. The whole set of equipment includes reactor, vertical fractionating column, horizontal condenser, water storage tank, oil spill tank and piping (dilution kettle). All parts of the equipment that contact with the material are all made by stainless steel.



  • High performance and latest technology based Emulsion Resin Plants
  • Emulsions processed comprise solvent free binders that find usage in preparation of paints as well as coatings
  • Emulsions manufactured through polymerization process
  • Paints and coatings are superior in performance and environment friendly
  • Emulsions having excellent binding properties
Raw Materials:
  • Emulsifier
  • Monomer
  • Catalyst
  • Activators
  • Acids
  • Additives
Man Power Requirement:
  • Up to 5000 kgs batch plant you resquire one supervisor, one operator and three work men

Reactor parameters:



Effective volume (L)








>Electric heating


>Hot water


>Outside the half-pipe

>The coil

>Single mechanical seal

Double mechanical seal



1. the motor power size, stirring speed level determined according to

   actual requirements.
2. the thickness of the cylinder pressure to be based on response.












































*Specification can be changed as per customers requirements
